DOT Push To Connect Air Fittings

Air Brake Push to Connect Fittings Applications: Used with SAE J844 Type A and Type B nylon tubing in air brake system, or in cab air controls, except for where temperature is under -40°F(-40°C) or above +200°F(+93°C) or where battery acid can drip on tubing. Advantages: Material: Brass, EPDM O Ring Meet D.O.T. FMVSS 571.106 air brake specifications  Easy and fast assembly by hand, no special tools asked Reusable: connect and disconnect numerous times Pre-applied Teflon: loctite 516 on male pipe Positive Seal: After tubing is inserted, seal is made no leakage Pressure Range: Vacuum to 150PSI Temperature Range: -58°F to 302°F (-50°C to 150°C) Air brake push-to-connect fittings are an important component of any air brake system. They are DOT compliant, meaning they meet the safety standards set by the Department of Transportation. These fittings are designed to connect the brake lines  in a vehicle's air brake system, allowing for efficient and effective braking. The push-to-connect design of these fittings makes them easy to use and install. They work by simply pushing the tube into the fitting until it clicks into place. The fitting uses a collet to hold the tube securely in place, ensuring a tight and leak-free connection. One of the advantages of using air brake push-to-connect fittings is that they eliminate the need for special tools or expertise. Anyone can install them, even those with no previous experience with air brake systems. The fittings are designed to be intuitive and easy to use, which makes them an ideal choice for DIYers and professional mechanics alike. Another advantage of these fittings is their versatility. They come in a wide range of sizes and configurations （unions, connectors, 45°elbow, 90°elbow, fixed or swivel, run tee, branch tee）, allowing them to be used in a variety of applications. Whether you need to connect brake lines in a truck, bus, or other type of vehicle, there is a push-to-connect fitting that will meet your needs. Finally, air brake push-to-connect fittings are incredibly reliable. They are designed to withstand the high pressures and temperatures that are typical in air brake systems, and they are built to last. When you use these fittings, you can have confidence that your brake system will function properly and safely. In summary, air brake push-to-connect fittings are an essential component.

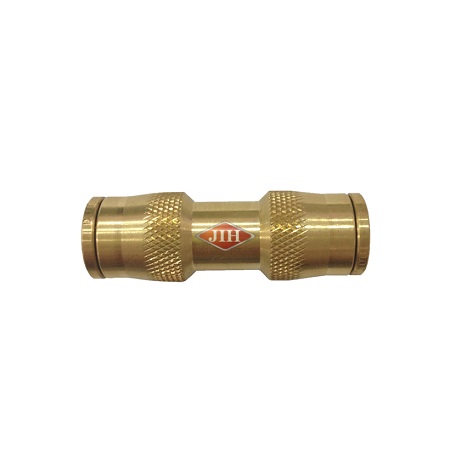

Air Brake Push to Connect Union Fittings Push-to-connect union connectors are an essential component in air brake systems, where quick and easy assembly and disassembly of tubing connections is required. These connectors are widely used in vehicle applications. Push-to-connect union are designed to connect two pieces of tubing together, creating a secure and leak-free seal. One of the key advantages of push-to-connect union is their ease of use. These connectors can be assembled and disassembled quickly and easily by hand, without the need for any special tools. Another significant advantage of push-to-connect union is their re usability. These connectors can be connected and disconnected numerous times without causing any damage, making them a cost-effective solution for air brake systems that require frequent maintenance. Push-to-connect union are typically made from high-quality materials such as brass and EPDM O Ring, ensuring their durability and resistance to wear and tear. These connectors are designed to meet DOT FMVSS 571.106 air brake specifications and can withstand a pressure range of vacuum to 150 PSI and a temperature range of -58°F to 302°F (-50°C to 150°C). In summary, push-to-connect union connectors offer a convenient and reliable solution for connecting tubing in air brake systems. They are easy to assemble and disassemble by hand, reusable, and provide a tight, leak-free seal. These connectors are suitable for use in various applications and can withstand a wide range of pressures and temperatures.

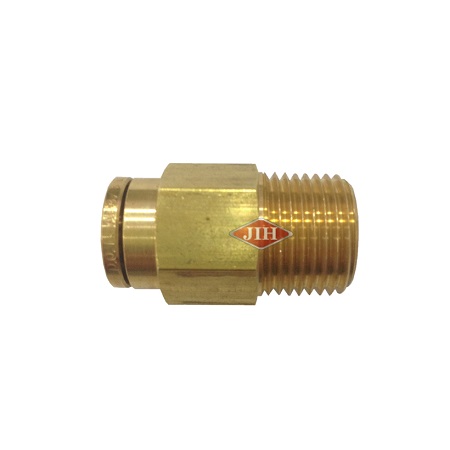

Air Brake Push to Connect Male Connectors Push-to-connect union connectors are an essential component in air brake systems, where quick and easy assembly and disassembly of tubing connections is required. These connectors are widely used in vehicle applications. These connectors are designed to connect tubing, creating a secure and leak-free seal. The male connector is inserted into the female connector and held in place , creating a tight seal between the two connectors. One of the key advantages of push-to-connect union connectors is their ease of use. These connectors can be assembled and disassembled quickly and easily by hand, without the need for any special tools. The pre-applied Teflon on the male pipe ensures a positive seal is made after the tubing is inserted, eliminating the risk of leakage. Another significant advantage of push-to-connect union connectors is their re usability. These connectors can be connected and disconnected numerous times without causing any damage, making them a cost-effective solution for pneumatic systems that require frequent maintenance. Push-to-connect union connectors are typically made from high-quality materials such as brass and EPDM O Ring, ensuring their durability and resistance to wear and tear. These connectors are designed to meet DOT FMVSS 571.106 air brake specifications and can withstand a pressure range of vacuum to 150 PSI and a temperature range of -58°F to 302°F (-50°C to 150°C). In summary, push-to-connect union connectors offer a convenient and reliable solution for connecting tubing in pneumatic systems. They are easy to assemble and disassemble by hand, reusable, and provide a tight, leak-free seal. These connectors are suitable for use in various applications and can withstand a wide range of pressures and temperatures.

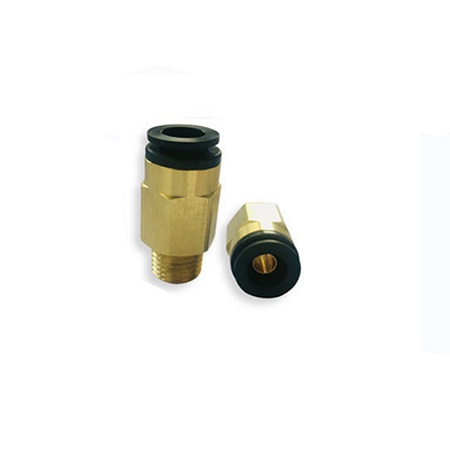

Composite D.O.T. Push-to- Connect Air Brake Fittings Applications: Used with SAE J844 Type A and Type B nylon tubing in air brake system. Features and Benefits: Designed to resist mechanical pull-out Easy to assemble and disassemble over and over again Swivel is for installation purposes only For use with SAE J844 nylon air brake tubing Working Pressure: Up to 145 PSI Temperature Range: -40°F to 140°F (-40°C to 60°C) Fittings meet DOT FMVSS 571.106 standards and SAE J1131, J2494-1, and J2494-3 Composite D.O.T. Push-to-Connect Air Brake Fittings are an innovative solution that has been designed for use in air brake systems. These fittings are made from composite materials and brass, which offer many benefits over traditional metal fittings. They are used in air brake systems. These fittings are made from composite materials such as nylon, which offer several advantages over traditional metal fittings. The composite materials used in these fittings are lightweight, strong, and resistant to corrosion, making them ideal for use in harsh environments. Additionally, composite fittings do not require any special tools to install, which makes them easy to use and maintain. The push-to-connect feature of  these fittings is what sets them apart from other types of fittings. Push-to-connect fittings allow for quick and easy connections, without the need for threads or tools. This feature also allows for easy disconnection, making maintenance and repairs simpler and faster. The push-to-connect feature is also designed to provide a leak-proof seal, ensuring the safe and reliable operation of the air brake system. Another advantage of Composite D.O.T. Push-to-Connect Air Brake Fittings is that they are compliant with Department of Transportation (D.O.T.) regulations. This means that they have been rigorously tested and meet the high standards set by the D.O.T. for safety and reliability. Compliance with D.O.T. regulations is essential for any component used in an air brake system, as failure to meet these standards could result in serious accidents and injuries. In conclusion, Composite D.O.T. Push-to-Connect Air Brake Fittings are a reliable, safe, and easy-to-use solution for air brake systems. Their lightweight and corrosion-resistant composite materials made them an excellent choice for the vehicle industry.

D.O.T. Push-to- Connect Elbows for Air Brake System Applications: Used with SAE J844 Type A and Type B nylon tubing in air brake system, or in cab air controls, except for where temperature is under -40°F(-40°C) or above +200°F(+93°C) or where battery acid can drip on tubing. Advantages: Material: Brass, EPDM O Ring Meet D.O.T. FMVSS 571.106 air brake specifications  Easy and fast assembly by hand, no special tools asked Reusable: connect and disconnect numerous times Pre-applied Teflon: loctite 516 on male pipe Positive Seal: After tubing is inserted, seal is made no leakage Pressure Range: Vacuum to 150PSI Temperature Range: -58°F to 302°F (-50°C to 150°C) D.O.T. PTC Male Elbows are a type of fitting that are commonly used in air brake  systems. These fittings are designed to connect tubes and fittings. They are widely used in the automotive industries D.O.T. PTC Male Elbows are available in both 90° and 45° angles, allowing for flexibility and customization in air brake systems. These fittings are designed to be highly durable and are made from high-quality materials to ensure long-lasting performance. They are also engineered to withstand high-pressure and high-temperature applications. One of the key features of D.O.T. PTC Male Elbows is that they are available in both fixed and swivel configurations. The fixed configuration is ideal for applications where a stable connection is required, while the swivel configuration is ideal for applications where flexibility and movement are necessary. The swivel configuration allows for easier installation and reduces the risk of damage to the fitting and tube or hose. D.O.T. PTC Male Elbows are also designed to meet the requirements of the Department of Transportation (D.O.T.) regulations, ensuring they are safe and reliable for use in transportation systems.

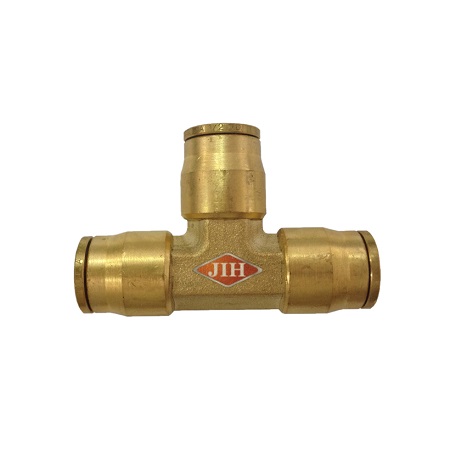

D.O.T. Push-to- Connect Union Tees for Air Brake System O.T. Push-to-Connect Union Tees are an essential component of air brake systems used in various vehicles such as trucks, buses, and trailers. They are designed to connect air brake tubing together, creating a reliable and leak-free seal.Below, we will explore what D.O.T. Push-to-Connect Union Tees are and their benefits. Firstly, let's take a closer look at what D.O.T. Push-to-Connect Union Tees are. These fittings consist of three ports and are used to connect three air brake tubes together. The push-to-connect feature of these fittings allows for a quick and easy installation process, saving both time and money. The D.O.T. certification ensures that these fittings meet the safety and performance standards set by the Department of Transportation. One of the main benefits of using D.O.T. Push-to-Connect Union Tees is their reliability. They are designed to withstand high pressures and extreme temperatures, making them ideal for use in air brake systems. Additionally, their compact size allows for easy installation in tight spaces. They also provide a leak-free seal, which is essential for the safe operation of the air brake system.

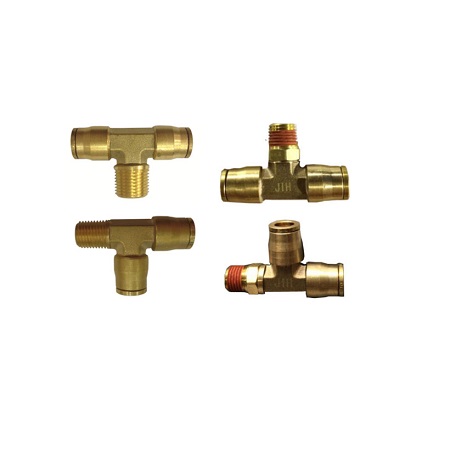

D.O.T. Push-to- Connect Male Run Tee and Male Branch Tee for Air Brake System A male branch tee and run tee are essential components of an air brake system. These fittings provide a reliable connection for air lines and are designed to withstand high pressure and heavy usage. The push-to-connect feature of these fittings makes them easy to install and use. A male branch tee is a T-shaped fitting that has a male threaded connection on one end and two push-to-connect ports on the other two ends. This fitting is used to create a branch in the air line and is typically used in areas where a secondary line is needed to supply air to additional components. The male branch tee is available in fixed and swivel types. The fixed type is rigid, while the swivel type can rotate 360 degrees, allowing for greater flexibility in installation. A male run tee, on the other hand, is a straight fitting that has a male threaded connection on one end and a push-to-connect port on each of the other two ends. This fitting is used to connect two air lines to a single source, such as an air compressor or reservoir. The male run tee is also available in fixed and swivel types. Both the male branch tee and run tee are typically made of high-quality materials such as brass , which provide excellent durability and resistance to corrosion. The push-to-connect feature of these fittings makes them easy to install and requires no special tools or expertise. This makes them an ideal choice for use in a variety of air brake systems, including commercial trucks, buses, and trailers. In summary, the male branch tee and run tee are important components of an air brake system. These fittings provide reliable connections for air lines and are available in fixed and swivel types. Their push-to-connect feature makes them easy to install and use, and they are typically made of high-quality materials for excellent durability and corrosion resistance.
